Sterownik do WC EDITION E, zasilanie i parametryzacja przez sws
Kod IK
41010272899
Kod EAN
4021163167214
Kod producenta
010272899
Marka
SCHELL
Model
EDITION E
Cena katalogowa netto
601,63 EUR / szt.
Cena katalogowa brutto
740,00 EUR / szt.
,na nagrody

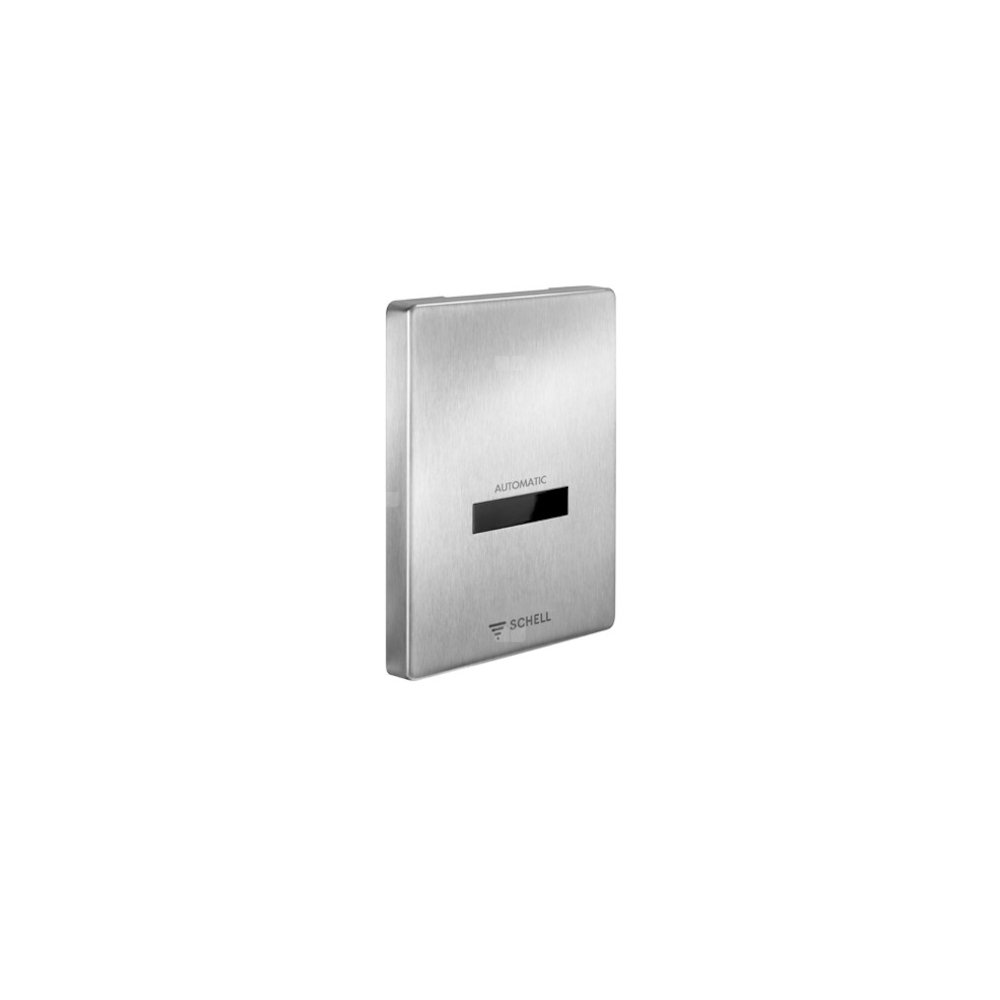

WC control EDITION E
Vandal-resistant design
Contact-free infrared sensor flushing facility. For SCHELL COMPACT II concealed WC flush valve. Automatic triggering when leaving the WC (room monitoring). Dual flush. Suitable for networking with the SCHELL SWS water management system. Configurable via SCHELL Single Control SSC. Power supply via SWS, mains adapter or battery compartment.Scope of delivery
- Front panel with infrared sensor window
- 6 V solenoid valve with pre-filter
- Self-closing cartridge with automatic nozzle cleaning needle
- Baffle plate for flow rate regulation
- Installation frame with infrared sensor electronics, programmable
Technical data
- Setting options via SWS SSC
- Programming via short range reflex (off/on)
- Sensor range (short/medium/long)
- Dual flush (eco flush volume 3 l with dwell time < 45 s, main flush volume 4.5/6/9 l)
- Stagnation flush (off/5-600 s, every 1-240 h after last flush/every 1-240 h)
- Energy saving mode (off/1-254 h after last flush)
- Setting options via short range reflex
- Sensor range (short/medium/long)
- Stagnation flush (off/every 24 hours after last flush)
- Dual flush (eco flush volume 3 l with dwell time < 45 s, main flush volume 4.5/6/9 l)
- Material: Front panel Stainless steel
- Surface: Front panel Brushed stainless steel
- Dimensions front plate: W 120 mm x h 150 mm x d 12 mm
Protecting against vandalism and handling heavy use are typical challenges faced by public and commercial sanitary facilities. WC flush systems from SCHELL are the answer. Combining an appealing design with robust, vandal-resistant construction and water-saving features, these high-quality fittings are available even on a limited budget.
Dane produktu
| Grupa produktowa | Accessories sanitary fittings |
|---|---|
| Grupa towarowa | WC and urinal flush systems - incl. mounting modules |
| Kraj pochodzenia | DE |
Dane logistyczne
Opakowanie zbiorcze 1
Masa brutto [kg]
1,06
Długość [m]
0,368
Szerokość [m]
0,257
Wysokość [m]
0,13
