Regulator temperatury zasilania ogrzewania podłogowego - zestaw bez pompy, do węzła Regudis W-HTE
Regulator temperatury zasilania ogrzewania podłogowego - zestaw bez pompy, do węzła Regudis W-HTE
Marka: OVENTROP
EAN/GTIN: 4026755476187
Kod IK: Z81344553
Kod producenta: 1344553
Cena katalogowa
Na zapytanie
Regulator temperatury zasilania ogrzewania podłogowego - zestaw bez pompy, do węzła Regudis W-HTE
Flow temperature control module for surface heating systems.
For the extension of the Regudis W-HTE by a thermostatic flow temperature control for surface heating circuits.
Flow temperature setting: 20 °C - 50 °C
Suitable for on-site installation of the following pump types:
(Housing design G 1 130 mm)
Wilo Para 15
Wilo Yonos Para 15
Wilo Varios Pico-STG 15
Grundfos UPM3 Auto 15
When using heating circuit manifolds up to max. 11 heating circuits:
Grundfos Alpha2 15
Biral PrimAX 15
If an installation depth of 115 mm (flush-mounted cabinets) can be guaranteed:
Wilo Yonos Pico Plus 15

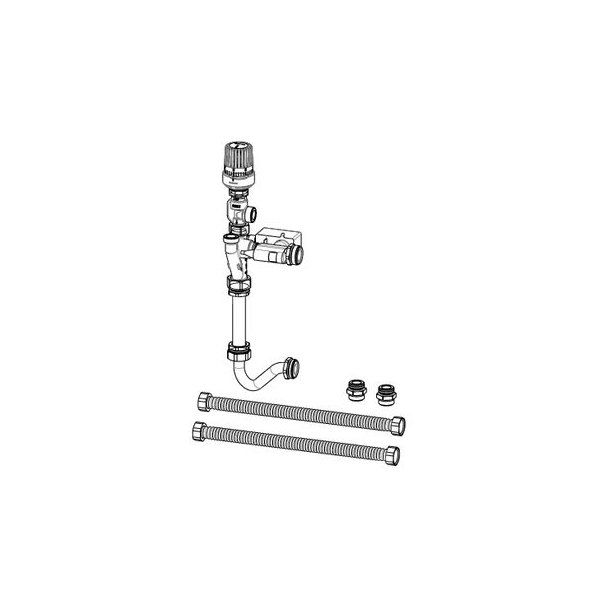

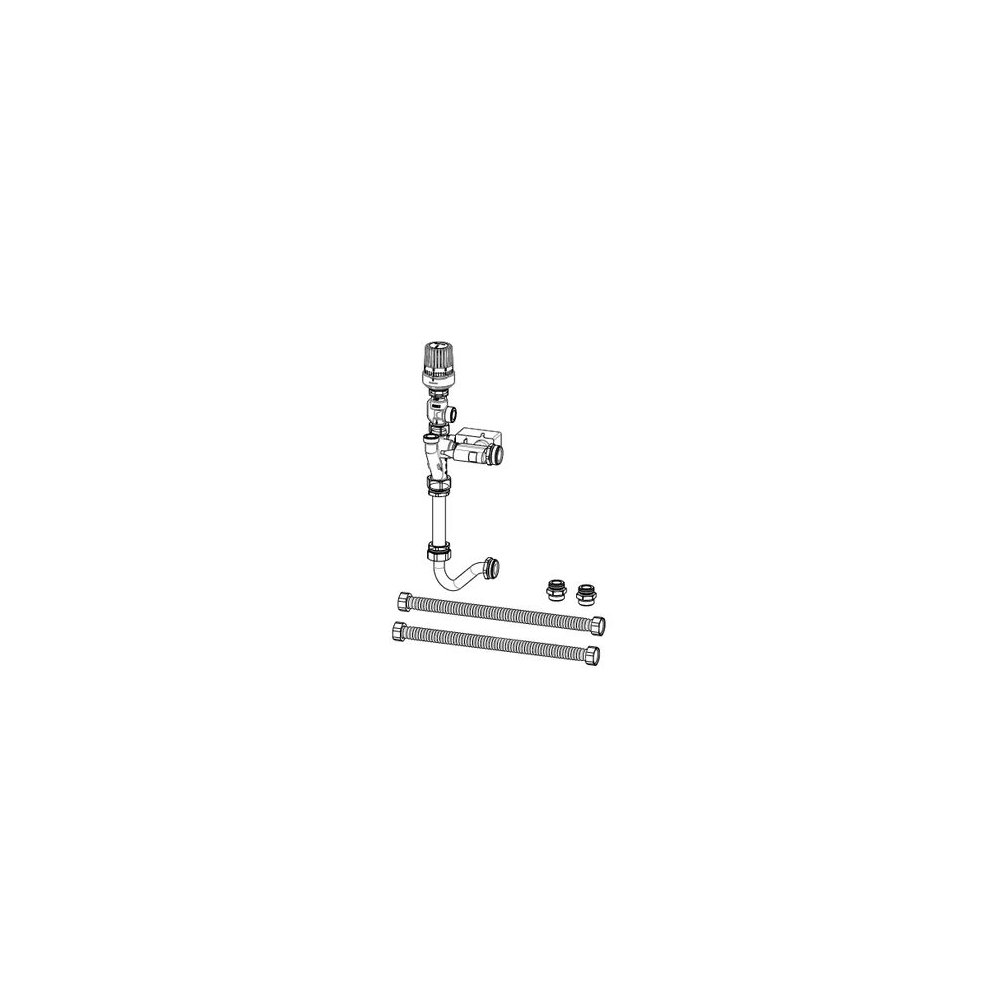

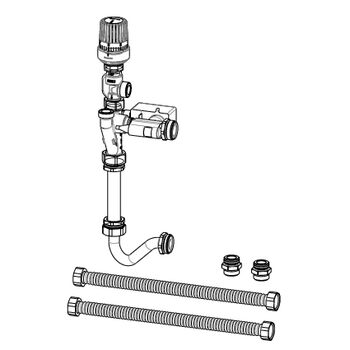

Consisting of:
- High-efficiency pump Grundfos UPM3 Auto 15-70
- Thermostatic temperature controller with contact sensor
- Connection set for connecting the Regudis W-HTE
- Safety temperature monitor for max. limitation of the heating circuit temperature
