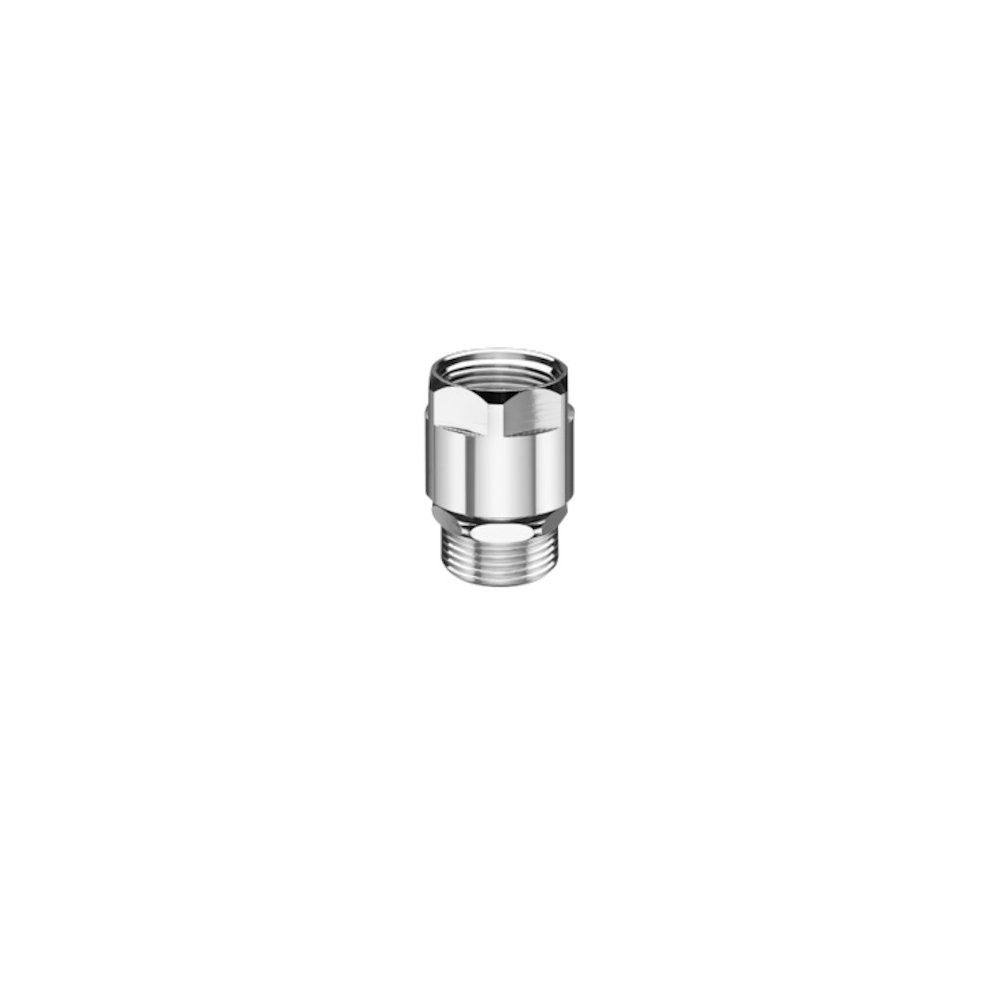

Napowietrzacz przewodu 1/2'' chrom

Kod IK

41286120699

Kod EAN

4021163116885

Kod producenta

286120699

Marka

SCHELL

Model

Brak modelu

Cena katalogowa netto

31,12 EUR / szt.

Cena katalogowa brutto

38,28 EUR / szt.

Anti-vacuum device

Flow form, version C

For installing on appliance connection fittings with backflow preventer, without anti-vacuum device.

Technical data

Max. Operating pressure: 10 bar
Max. operating temperature: 70 °C
Safety device, conforms to EN 1717: HB
Connection: DN 15 G 1/2 AG
Outlet: DN 15 G 1/2 IG
Material: Brass, conform to German drinking water regulations
Surface: Chrome
Certificates: DIN-DVGW

Note

Together with appliance connection fittings with backflow preventer HP safety combination (EN 1717).

Mounting instruction

Downstream pipework must be flexible and removable.
The tube diffuser must be installed vertically and be fully accessible.
Tube diffusers must not be installed in rooms at risk of flooding.
The tube diffuser must be installed in a ventilated environment (clean atmosphere) and protected against frost/high temperatures.
No shut-off device may be installed downstream of the tube diffuser.
The minimum distance to the subsequent liquid level must be > 250 mm.
Tube diffusers must not be exposed to constant back pressure.

Appliance connection fittings for any situation

From bathrooms to kitchens, and cellars to garages and gardens, the focus should always be on the safe handling of water. This is where appliance connection fittings from SCHELL help out. Whatever the valve needed, in new buildings or renovation projects, the SCHELL product portfolio always has the right model – and, naturally, always with the trusted SCHELL quality and materials safe to use with drinking water.

Note

Together with appliance connection fittings with backflow preventer HP safety combination (EN 1717).

Mounting instruction

Downstream pipework must be flexible and removable.
The tube diffuser must be installed vertically and be fully accessible.
Tube diffusers must not be installed in rooms at risk of flooding.
The tube diffuser must be installed in a ventilated environment (clean atmosphere) and protected against frost/high temperatures.
No shut-off device may be installed downstream of the tube diffuser.
The minimum distance to the subsequent liquid level must be > 250 mm.
Tube diffusers must not be exposed to constant back pressure.

Dane produktu

Grupa produktowa	Safety fittings
Grupa towarowa	Appliance connections
Kraj pochodzenia	DE

Dane logistyczne

Opakowanie zbiorcze 1

Jednostka zbiorcza opak.

opak

Ilość

Masa brutto [kg]

3,05

Długość [m]

0,17

Szerokość [m]

0,345

Wysokość [m]

0,057
